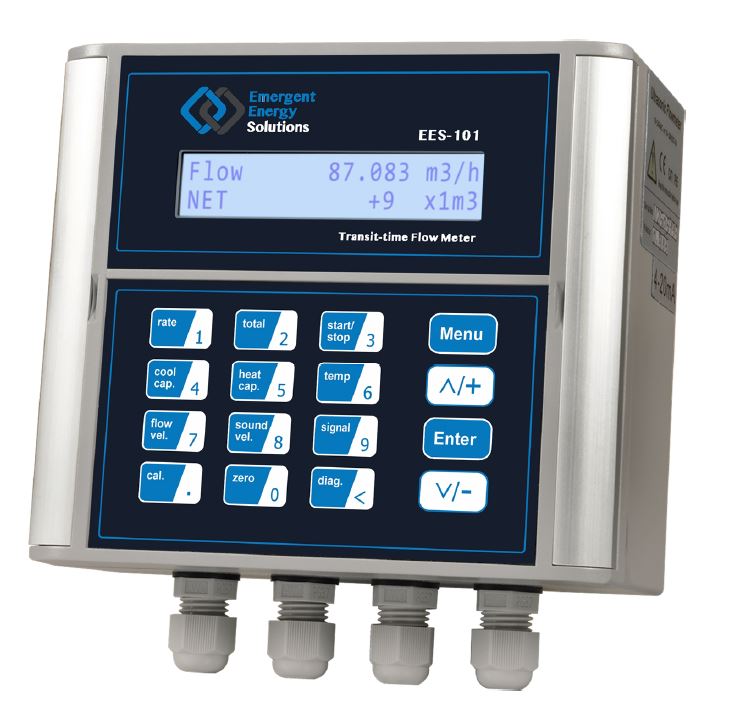

EES-101 Ultrasonic Water Sub Meter (1" - 48" Pipe Size)

The EES-101 Ultrasonic Flowmeter is a clamp-on water sub-meter for pipes from 1" to 48" (25mm–1200mm).

Specifications

• Pipe size range: 1"–48" (25mm–1200mm)
• Operating temperature: 32°F–140°F (0°C–60°C)
• Transducer cable length: Standard 30 ft (9m)
• Clamp-on transducer and temperature sensors included

Compatible Pipe Materials

• Copper (varying thicknesses)
• PVC (varying schedules)
• Carbon Steel (varying schedules)
• Rigid (must be rust-free inside)

Applications

• Track water flow on single-use or closed-circuit loops
• Chilled water and heating water monitoring
• Reduce water consumption
• Proof of flow verification

Integration Options

Available with a clear ABS enclosure housing the meter, power supply (110VAC/24VDC), and PANPOWER GEN4 Bridge for cloud connectivity or integration to onsite SCADA via 4-20 mA, pulsed output, or MODBUS RS-485.
