Keyence Liquid Ultrasonic Flow Meter FD-R Series (FD-H32, FD-R50, FD-R80, FD-R125, FD-R-200)
Keyence Liquid Ultrasonic Flow Meter FD-R Series (FD-H32, FD-R50, FD-R80, FD-R125, FD-R-200)
Regular price
$1,500.00 USD
Regular price
Sale price
$1,500.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

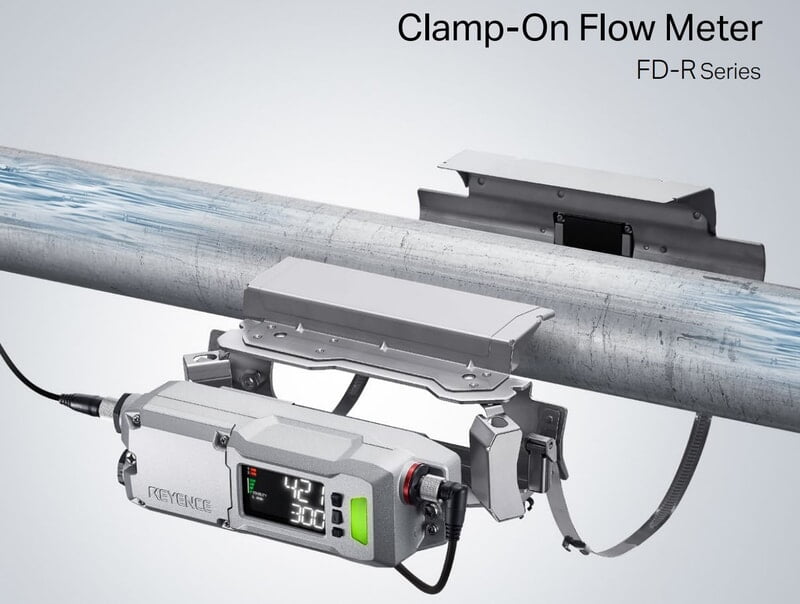

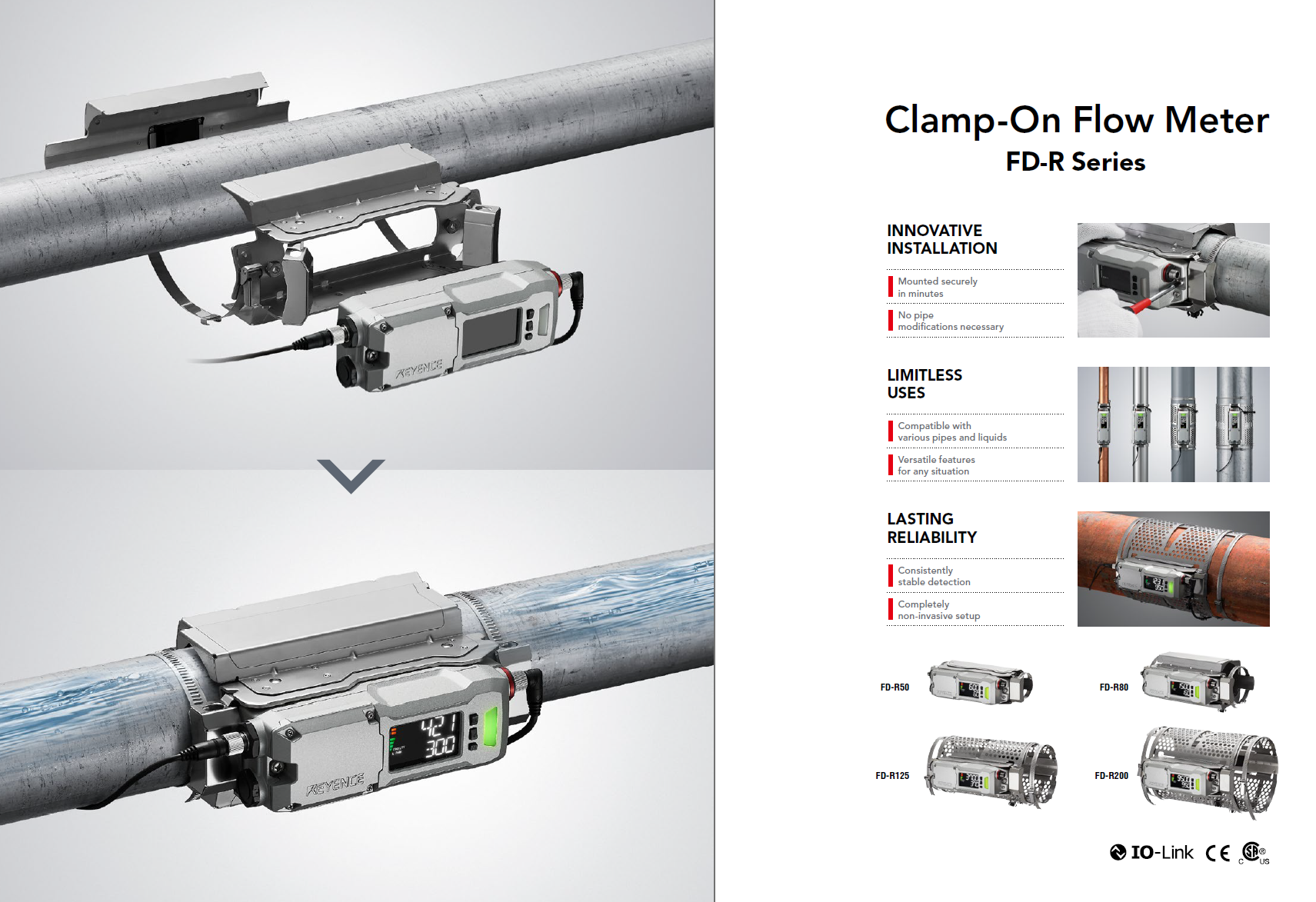

KEYENCE's FD-R Series Clamp-on Ultrasonic Liquid (Water) Flow Meter (sensor) is designed for pipes as large as 8". Installation is easy and requires only a screwdriver. The device can be mounted to a variety of materials including stainless steel, iron, copper, PVC, and resin. Both flow and temperature monitoring is possible for a wide variety of liquids—from water (including pure water) to oil, chemicals, and high-pressure liquids—at temperatures between -4°F and +248°F.
The device does not come into contact with the liquid, so there is no risk of liquid-based corrosion or degradation, reducing maintenance time and costs. The rugged metal construction includes an easy-to-read indicator light, and data can be recorded directly on the device. The IP69K enclosure rating and NEMA4X compliance make this sensor both highly reliable and convenient for indoor and outdoor use.
Mounting and Integration
- Clamp-On the Outside of a Pipe
- No Pipe Modification (Non-Invasive)
- No Downtime for hot-tap insertion installations or inline metering installations
- Easily Secure with 4 or 6 Screws
- Bracket Ensures Correct Mounting by Anyone

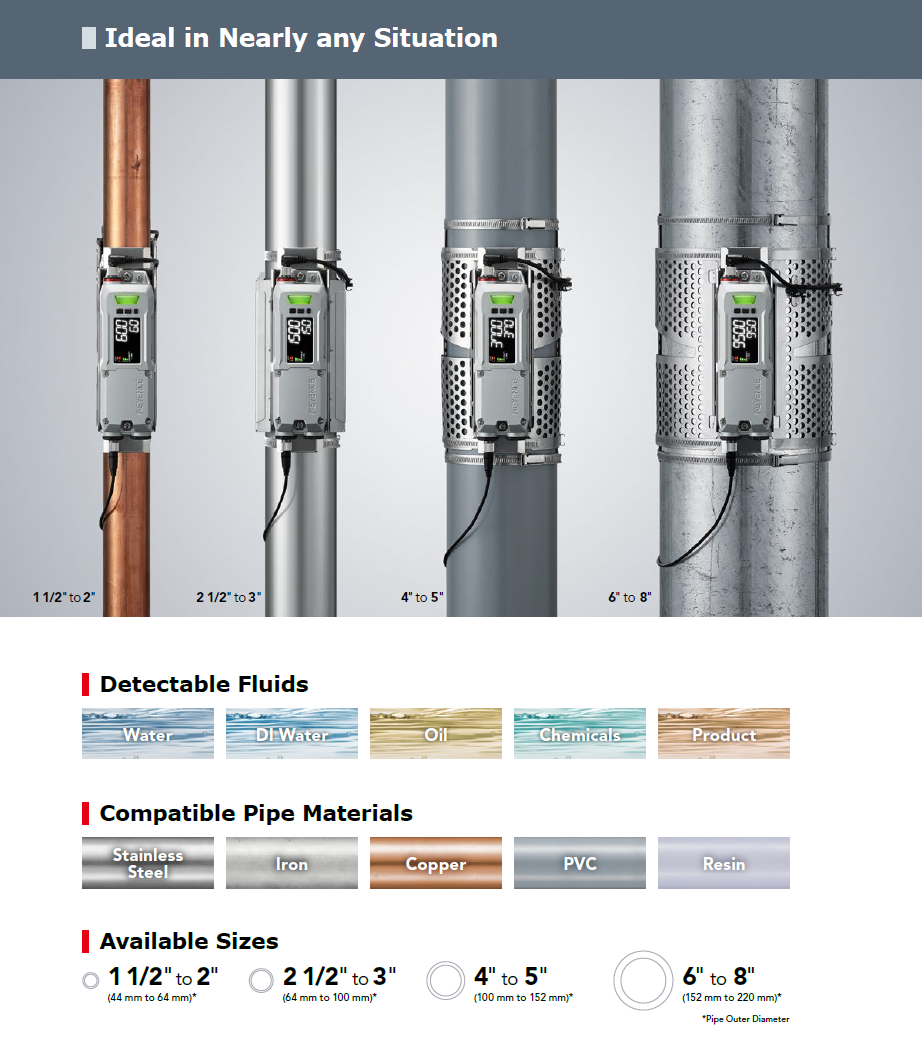

Highly Versatile Water metering for Any Situation
- Measure Water, DI Water, Oils, Chemicals, Product, etc.
- External pipe mount to Stainless, Iron, Copper, PVC, Resin, etc.
- Precise Monitoring with Accuracy of ±2.0% of RD
- Integrated Temperature Monitoring
- AC/DC Compatibility
Significant Reduction in Installation Time and Costs
- No loss of production during Installation through non-invasive installation
- No Special Knowledge, Tools, or Contractors Needed
- No Risk of Contamination, Leaks, or Pressure Loss
- Install in Minutes with a Standard Screwdriver
- Built-In Predictive Maintenance
