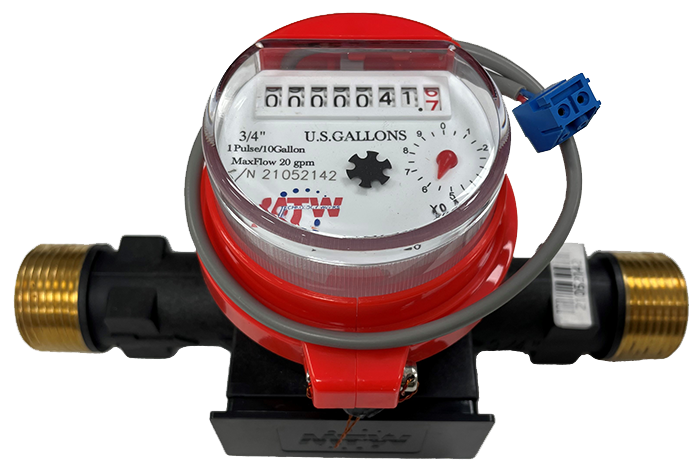

MTW MJ420

Features

• Poly body with brass threads
• Pulse output 1/10 gal
• Sealed register for tamper resistance
• Meets AWWA C708 performance
• NSF/ANSI 61 and NSF/ANSI 372
• Quiet operation
• 1-year new meter accuracy warranty
• 5-year standard warranty for body, register, and accuracy (AWWA C708)

Specifications

• Operating capacity (20 gpm)
• Max rate for continuous duty (15 gpm)
• Max pressure loss at max flow (10.9 psi)
• Normal flow range (+/- 1.5%) (1-20 gpm)
• Minimum flow (+/- 3%) (1/4 gpm)
• Max working pressure (150 psi)
• Max working temperature (Cold; MJ20) (105° F)
• Max working temperature (Hot; MJ420) (194° F)
• Meter casing spuds, nominal thread size (1″)
• Nominal pipe size (3/4″)
• Weight (0.9 lbs.)
• Materials – main case (Glass-reinforced Nylon)
