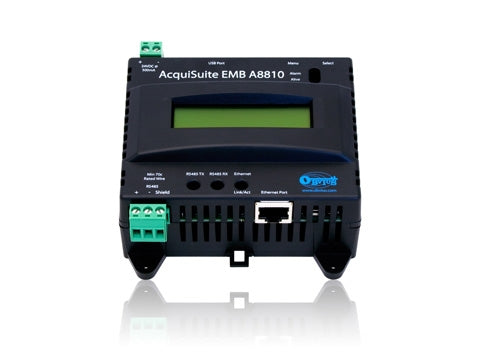

Obvius / Leviton AcquiSuite – EMB A8810

Overview

The Leviton EMB Hub A8810 is an intelligent, flexible data acquisition server for collecting energy data from submeters and environmental sensors through Modbus protocol. Connect to IP-based applications for enterprise energy management, demand response, and smart grid programs.

Key Features

• Connects up to 32 Modbus devices through RS-485 or TCP/IP
• Modbus RTU/RS-485, Ethernet, BACnet IP support
• No software required – access via any web browser
• Plug-and-play connectivity with integrated meter driver library
• Alarming, SNMP Traps, USB, security provisions, backlit LCD
• DIN rail mountable, CE, UL certified
• Compact form factor with industrial temp range (-30 to 70°C)

Data Collection

• Collects and logs data at user-selectable intervals
• Time-stamped data stored in non-volatile memory
• Push or pull data via HTTP, XML, FTP, or custom protocols

Compatibility

• Compatible with nearly any front-end software platform
• Accepted data integration logger for Panoramic Power Front End
• Data uploads from 1 minute to 24 hours

Power Supply Not Included.
