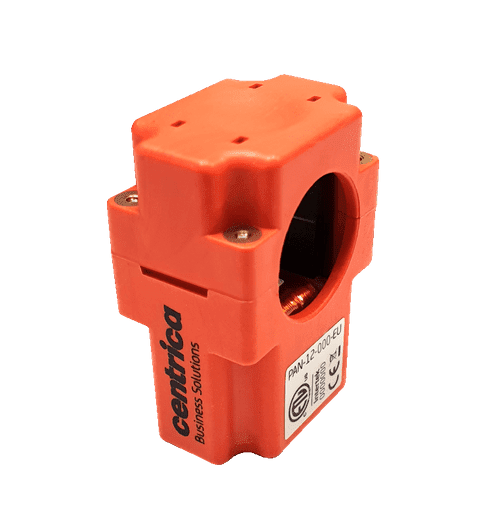

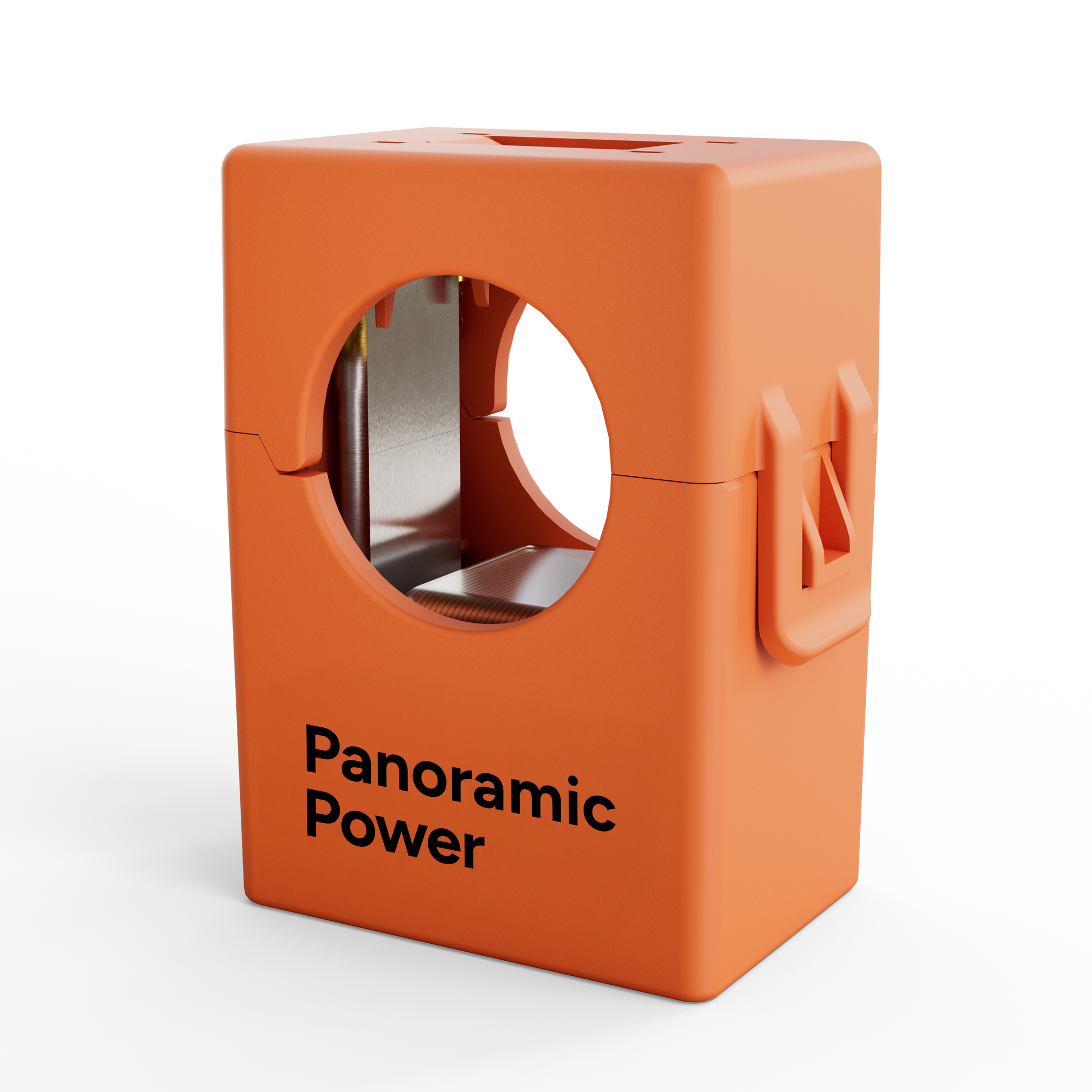

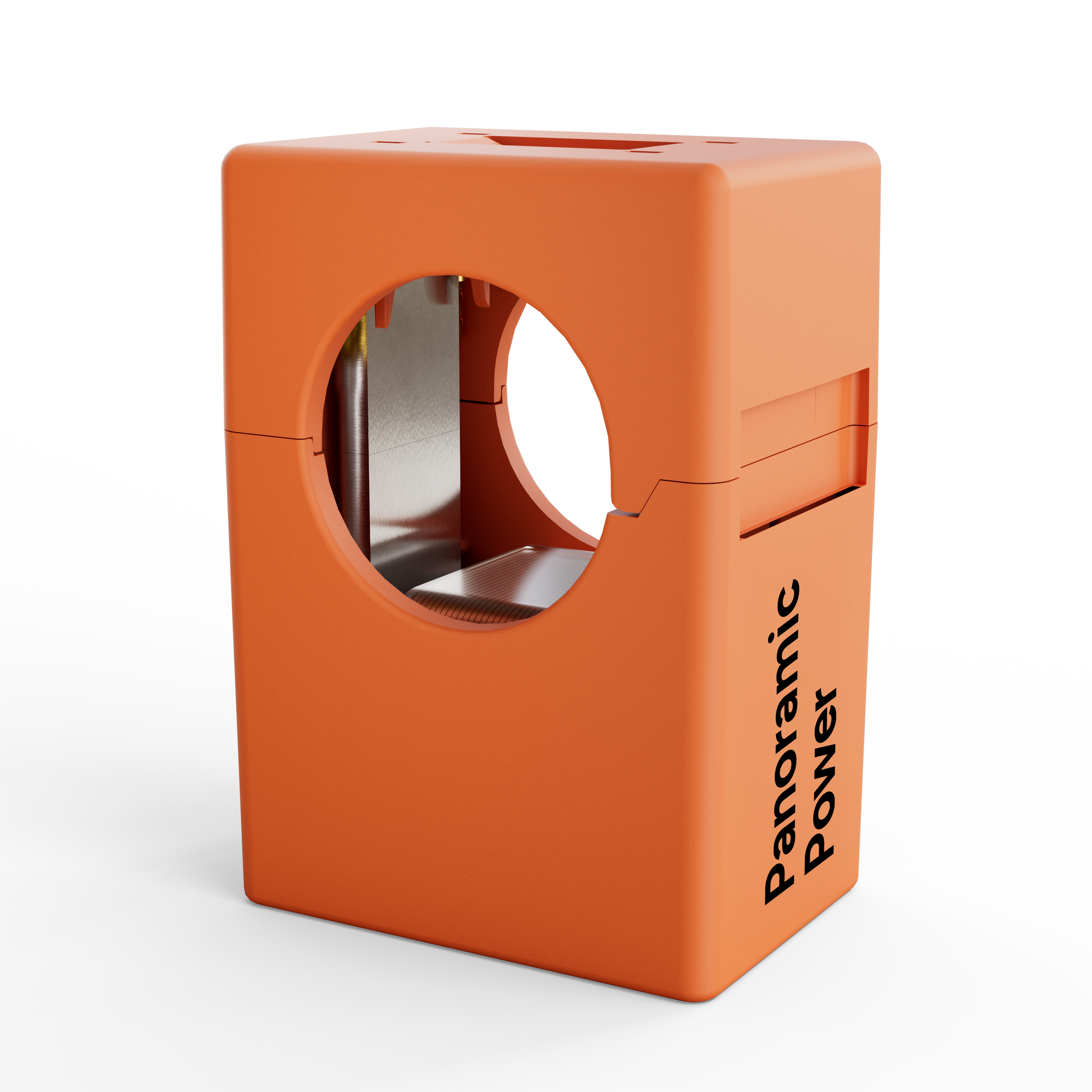

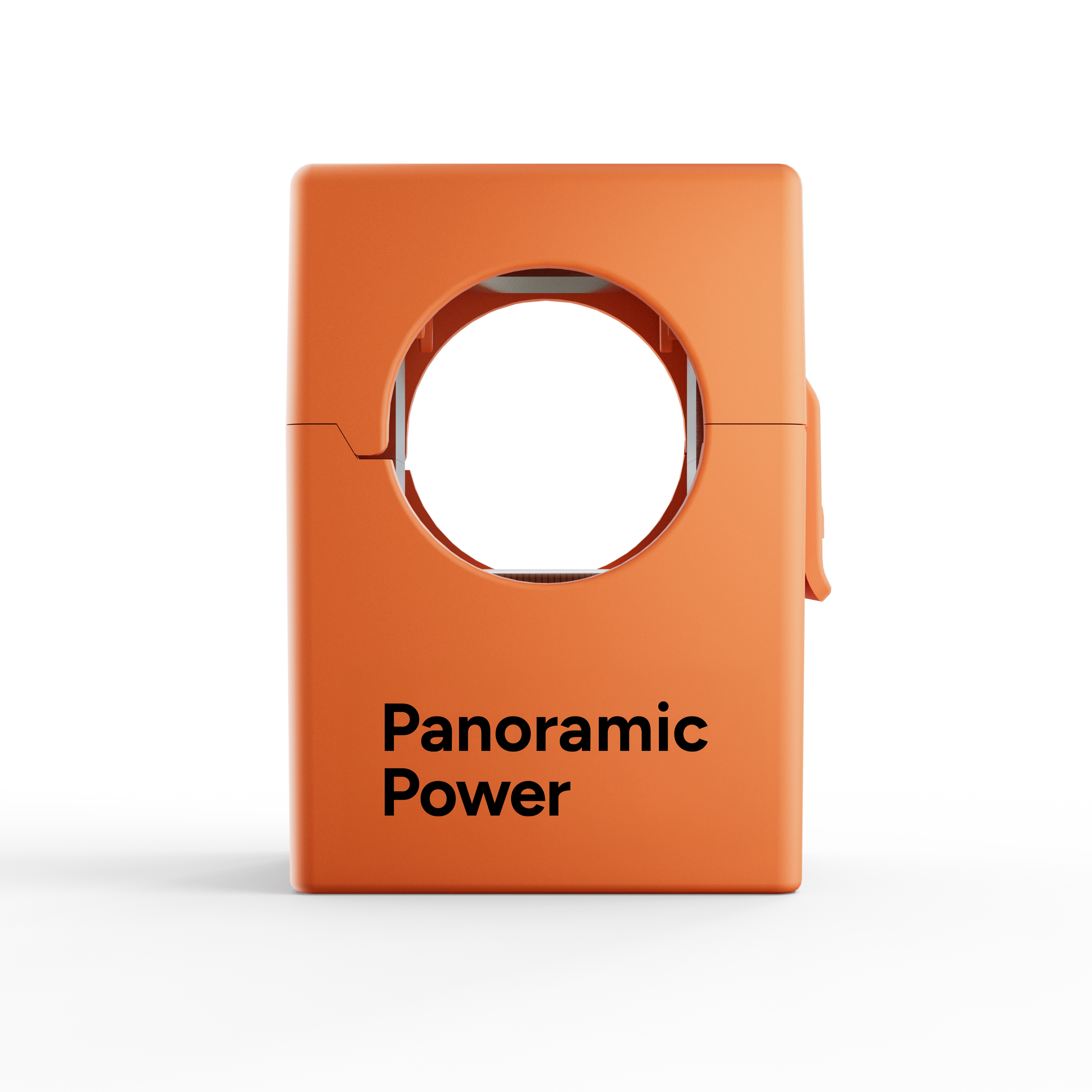

Panoramic Power (Centrica) PAN-12-225-US or PAN-12-225-EU Wireless Electric SubMeter

The Panoramic Power PAN-12 Wireless Sensor is designed for granular monitoring (sub-metering) of individual electrical circuits and devices.

Specifications

• Max hot-wire outer diameter: 0.74 inches (18.8 mm)
• Measuring range: 0–225 A
• Compatible with 1-Phase, 2-Phase, or 3-Phase circuits

How It Works

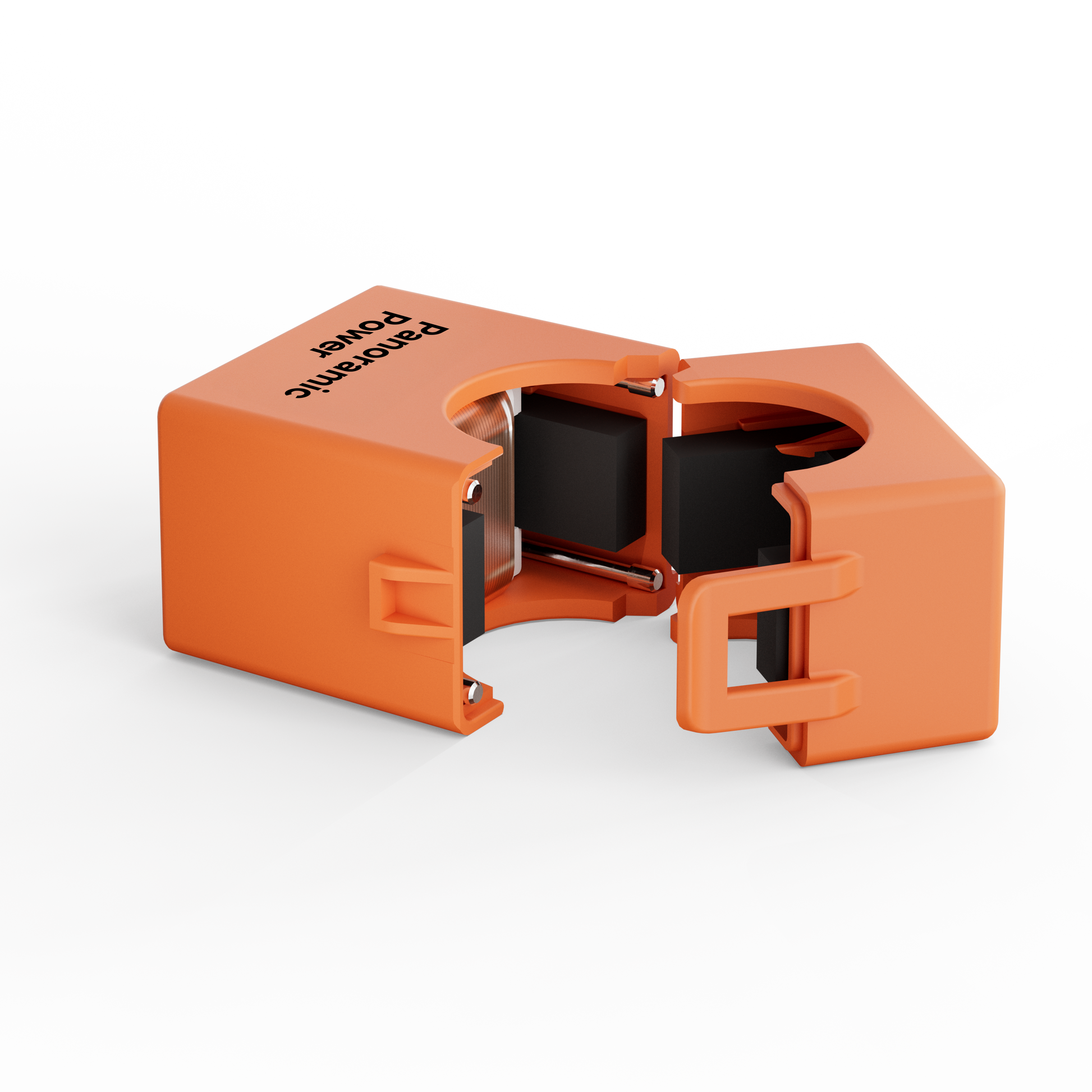

• Sensors snap onto circuit breaker outgoing wires — no disconnection required
• Self-powered via the magnetic field of the monitored wire
• Data is sent wirelessly to a bridge, then uploaded to the Panoramic Power server via the cloud
• Energy consumption is reported at sub-minute intervals
• Configure load type and phasing properties through the PowerRadar dashboard

Key Benefits

• Non-invasive — snaps and fits without disconnection
• No maintenance — self-powered sensor
• High accuracy measurement
• Wireless — no wiring, unlike standard CT-based monitoring systems
• Real-time data — current transmitted every 10 seconds

System Overview

The Panoramic Power System monitors electrical energy consumption at the individual circuit level, detecting excess usage to help organizations identify and reduce energy and maintenance expenses.
