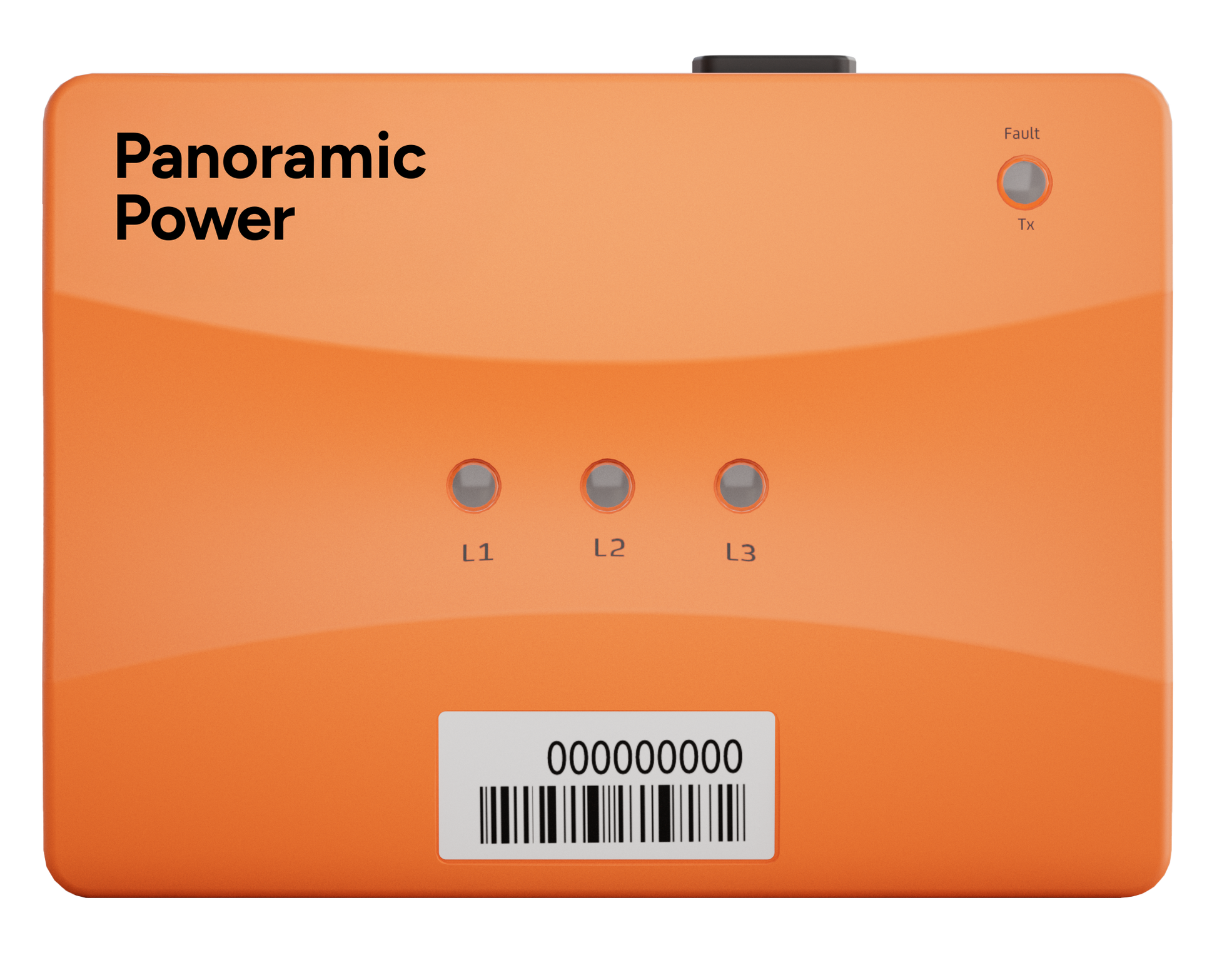

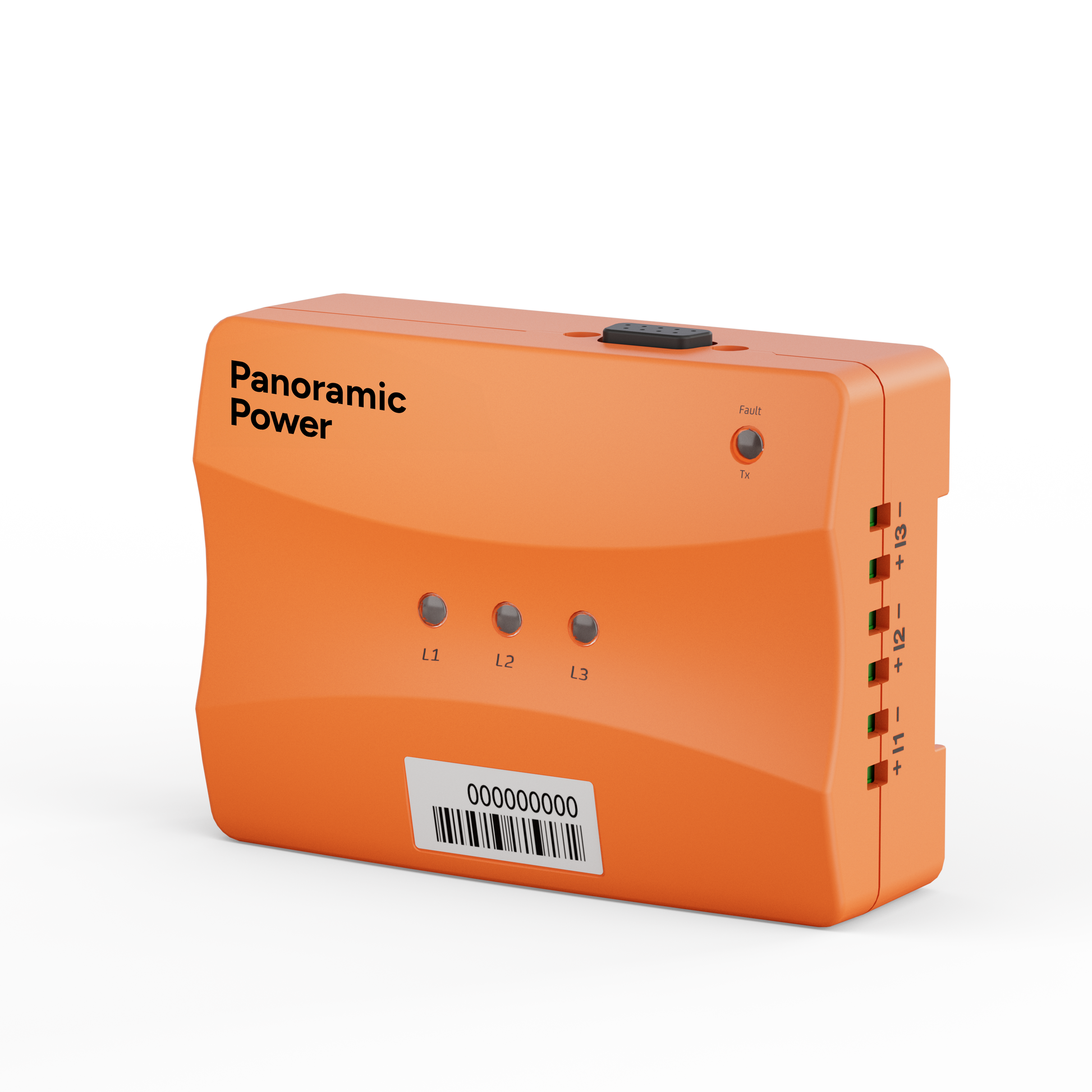

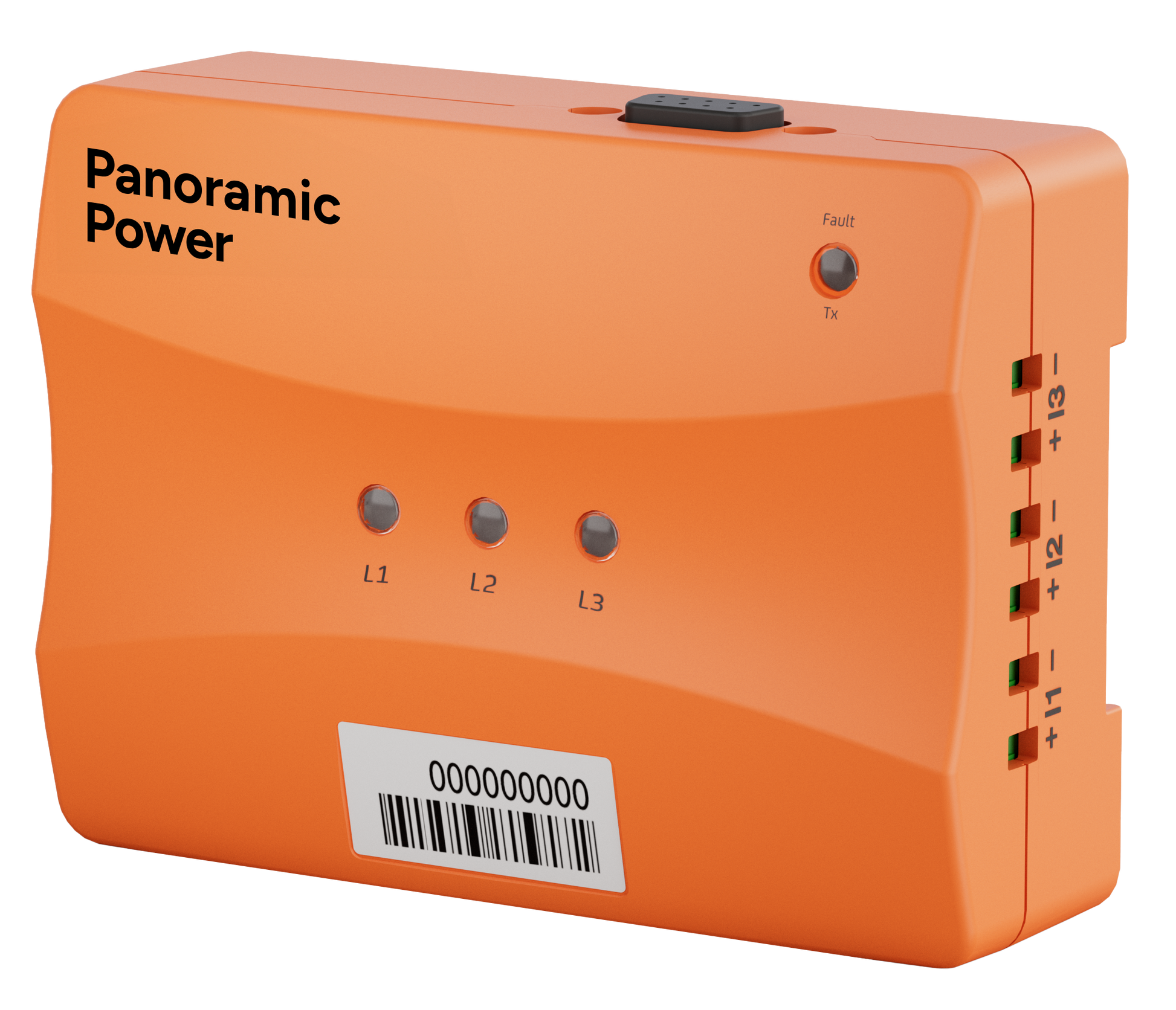

Panoramic Power (Centrica) PAN-42-US or PAN-42-EU Electric Sub Meter

The PAN-42 Power Meter provides high-accuracy real-time power consumption, demand, and advanced power quality measurements for main power monitoring and sub-metering.

Specifications

• Measures power, voltage, current, power factor, and power quality
• Supports 1-Phase, 2-Phase, or 3-Phase circuits (3-wire or 4-wire with neutral)
• Powered through reference line voltage (not self-powered)
• Designed for commercial and industrial manufacturing facilities

How It Works

• Requires an external 0-5 Amp Secondary Current Transformer
• Data sent wirelessly to a bridge, then uploaded to Panoramic Power server via the cloud
• Energy consumption reported at sub-minute intervals
• No maintenance required

Compatible Current Transformers

• 100 Amp (0-5A) CT
• 600 Amp (0-5A) CT
• 1000 Amp (0-5A) CT
• 2000 Amp (0-5A) CT
• 4000 Amp (0-5A) CT

Metering Kit Option

Available as a prebuilt metering kit including the fused disconnect and shunt breaker, pre-mounted and pre-wired onto a din-rail for easy installation.
