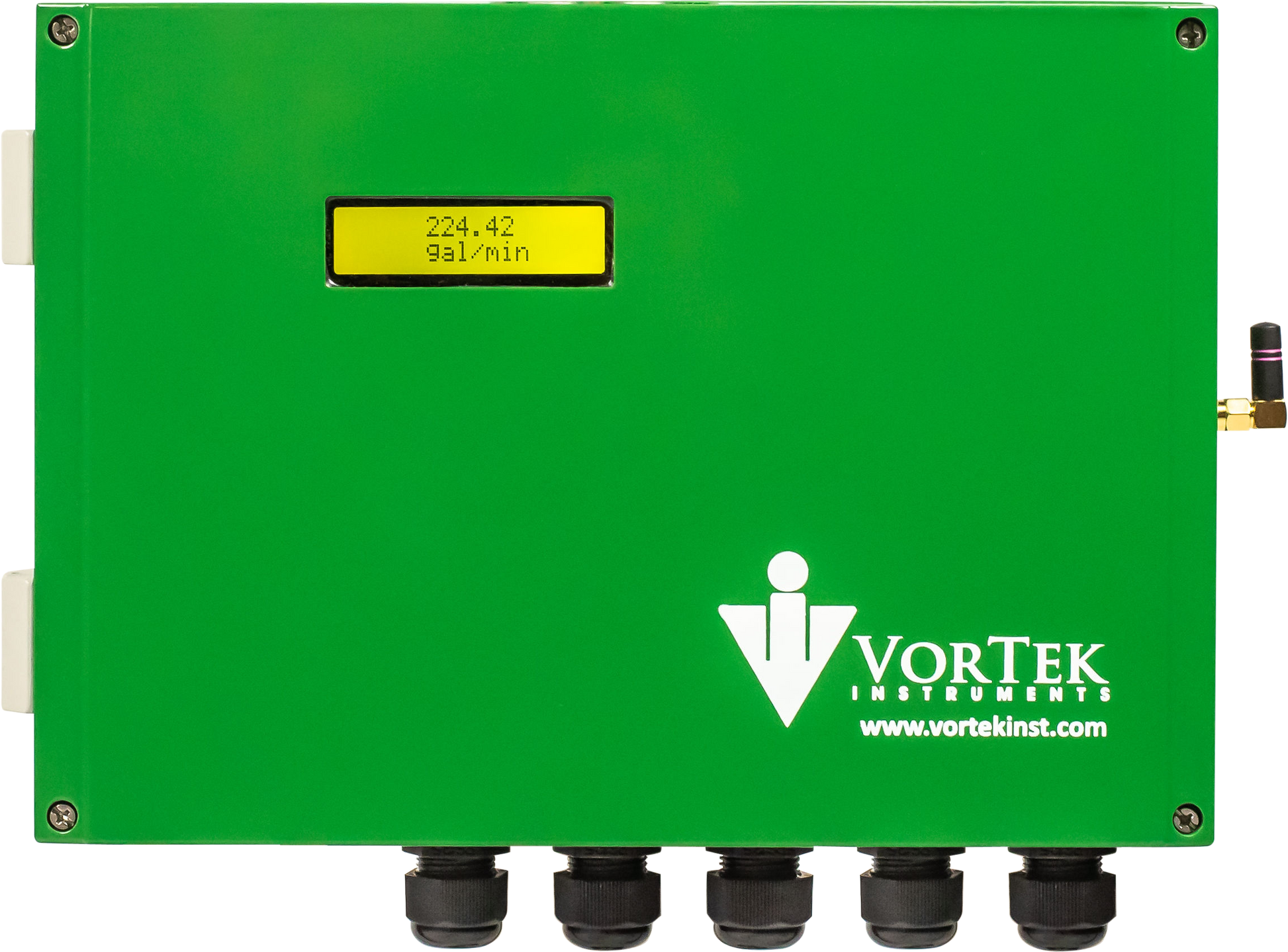

VorTek SonoPro® Professional Series Flowmeter (Model S36)

The VorTek SonoPro® Professional Series Flowmeter (Model S36) is a high-accuracy transit-time ultrasonic flowmeter designed for accurate and reliable flow measurement of clean liquids. The SonoPro® S36 utilizes high-accuracy transit-time ultrasonic technology with clamp-on or insertion transducers, providing non-invasive installation with no wetted or moving parts.

The S36 incorporates matched precision transducers and signal processing circuitry to accurately measure the flow of most liquids over a wide range of velocities. Compatible with SonoConfig™ software for easy setup and diagnostics.

Key Features

• High accuracy flow metering (up to ±0.75% of reading)
• BACnet™ IP & Modbus® TCP/IP communications
• Compatible with SonoConfig™ software
• No maintenance required
• Non-invasive installation
• No wetted or moving parts
• No pressure drop
• High turndown ratio
• No drifting, no recalibration required
• Bi-directional flow measurement
• Low total cost of ownership

Common Applications

• Glycol metering
• Boiler feedwater
• Chemicals
